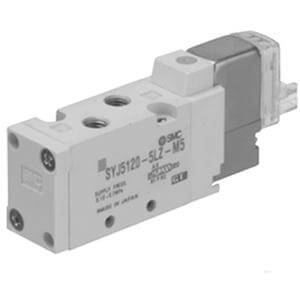

SMC SYJ5220-5LOU-M5-Q 5/2 DOUBLE SOL 24V DC BODY POR
4/2- 5/2- 5/3 Port Solenoid Valve, Base Mounted and Body Ported series SYJ5000
See technical informationReferences
SMC:SYJ5220-5LOU-M5-Q
Rubix:108A6635
Manufacturer :00043893
EAN:3618036149920
Product details : SMC SYJ5220-5LOU-M5-Q 5/2 DOUBLE SOL 24V DC BODY POR
▪ Fluid: air
▪ Operating pressure range: 0.1 - 0.7MPa
▪ Cv factor: body ported range 0.17 - 0.2;
▪ base mounted 0.25
▪ Coil rated voltage: 3, 5, 6, 12, 24VDC;
▪ 100, 110, 200, 220VAC
▪ Ambient & fluid temperature: max. 50°C
▪ Operating pressure range: 0.1 - 0.7MPa
▪ Cv factor: body ported range 0.17 - 0.2;
▪ base mounted 0.25
▪ Coil rated voltage: 3, 5, 6, 12, 24VDC;
▪ 100, 110, 200, 220VAC
▪ Ambient & fluid temperature: max. 50°C
▪ Function: 2 (2 Position Double)
▪ Piping: 2 (Body Ported)
▪ Exhaust: 0 (Individual)
▪ Specifications: Standard
▪ Voltage: 5 (24VDC)
▪ Lead Wire: LO (L Plug w/o Connector)
▪ Cable length: None
▪ Surge Suppressor: U (Indicator Light w/Surge Suppressor Non-polar)
▪ Manual Override: None
▪ Port Size: M5 (Body Ported M5X0.8)
▪ Thread: Rc
▪ Option: None
▪ Piping: 2 (Body Ported)
▪ Exhaust: 0 (Individual)
▪ Specifications: Standard
▪ Voltage: 5 (24VDC)
▪ Lead Wire: LO (L Plug w/o Connector)
▪ Cable length: None
▪ Surge Suppressor: U (Indicator Light w/Surge Suppressor Non-polar)
▪ Manual Override: None
▪ Port Size: M5 (Body Ported M5X0.8)
▪ Thread: Rc
▪ Option: None
Technical specifications
Attributes
| Type | 2 positions, bistable |
|---|---|
| Number of Ports | 5 |
| Volume flow rate | 129 l/min |
Show UNSPSC/ECL@SS
£ 78.44 excl. VAT
/ Each
£ 94.13 incl. VAT
- Delivery usually within ( 4 ) days
