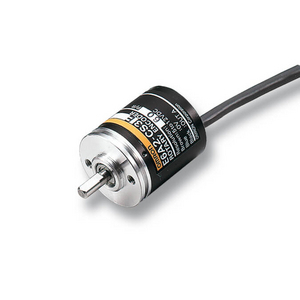

OMRON ROT. ENCODER 100P/R E6A2CW3C-100
E6A2-C Incremental Rotary Encoder
References
omron:E6A2CW3C-100
rubix:169A2494
Technical specifications
| Type | Incremental |
|---|---|
| Min. tension | 5 V |
| Max. tension | 12 V |
Product details : OMRON ROT. ENCODER 100P/R E6A2CW3C-100
Miniature rotary encoder for positioning in space-confined areas
Strengths
- Compact with an External Diameter of 25 mm
- Meets positioning requirements. It is a lineup type with a starting point output (phase Z).
- Ensures maximum measurement precision.
- Shock resistance strengthened by metal disk. (600 P/R max.)
- High response frequency and noise immunity make encoders ideal for factory automation applications
- Meets positioning requirements. It is a lineup type with a starting point output (phase Z).
- Ensures maximum measurement precision.
- Shock resistance strengthened by metal disk. (600 P/R max.)
- High response frequency and noise immunity make encoders ideal for factory automation applications
Technical specifications
Attributes
| Type | Incremental |
|---|---|
| Min. tension | 5 V |
| Max. tension | 12 V |
| Design size | 25 mm |
| Data output | NPN open collector |
| Class IP | IP50 |
| Shaft diameter | 4 mm |
| Min. temperature | -10 °C |
| Max. temperature | 55 °C |
Show UNSPSC/ECL@SS
£ 305.78 excl. VAT
/ Each
£ 366.94 incl. VAT
Usually arrives within 14 working days
