References
SMC:VM430-01-30R-X219
Rubix:109A8824
Manufacturer :VM430-01-30R-X219
EAN:3618036576085
Technical specifications
| Type | mechanical valve |
|---|---|
| Number of Ports | 3 |
Documents

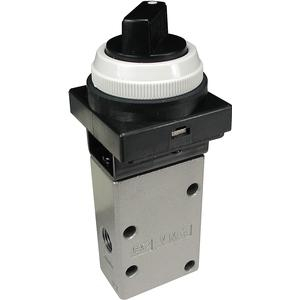

Product details : SMC VM430-01-30R-X219 3 PORT MECHANICAL VALVE
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
Strengths
•Fluid: air
Operating pressure: -100kPa to 1.0MPa
Effective area (Cv): 7mm 2 (0.38)
Ambient and fluid temperature: -5 to 60 C (no freezing)
Port size (nominal size): Rc(PT) 1/8 (6A)
Operating pressure: -100kPa to 1.0MPa
Effective area (Cv): 7mm 2 (0.38)
Ambient and fluid temperature: -5 to 60 C (no freezing)
Port size (nominal size): Rc(PT) 1/8 (6A)
Technical specifications
Attributes
| Type | mechanical valve |
|---|---|
| Number of Ports | 3 |
Show UNSPSC/ECL@SS
£ 94.37 excl. VAT
/ Each
£ 113.24 incl. VAT
- Delivery usually within ( 34 ) days
