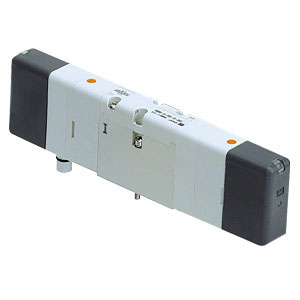

SMC VSR8-4-FG-S-3VZ-Q ISO 15407-2 SOLENOID VALVE

5 port solenoid valve conforming to ISO Standard 15407-2
Interface conforming to 18 mm size (VSS/R8-2) & 26 mm size (VSS/R8-4)
Compact design with high flow capacity (up to 1085 l/min)
Outstanding high-speed response (VSS8-2: 20 msec or less)
Long service life: 200 million cycles
Availability: rubber/metal seal; several parallel/serial transmission variations; plug-in type
IP65 compliant (except D-sub connector and flat ribbon cable kits).

•Size: 24 mm.
•Valve type: Metal & Rubber seal.
•Applicable cylinder bore size: Up to ø100.
•Fluid: Air & Inert gas.
•Maximum operating pressure: 1.0 MPa.
•Rated coil voltage: 12 VDC, 24 VDC.
•Enclosure: IP65 (Dust-tight/Water-jet-proof).

Seal: R (Rubber)
Configuration: FG (2-position)
Number of solenoids: S (Single)
Rated Voltage: 3 (24VDC)
Light/surge voltage suppressor: Z (Indicator Light w/Surge Voltage Suppressor)
Manual Override: Non-locking Push Style
Internal/External Pilot: Internal Pilot
