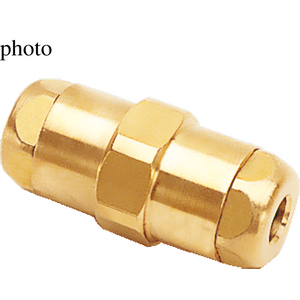

LEGRIS BRASS FITTING 6106-06-00
6106 - TUBE/TUBE CONNECTOR
References
parker legris:6106 06 00
rubix:125A1577
ean:0820099307534
Product details : LEGRIS BRASS FITTING 6106-06-00
In line connection of 2 tubes of equal diameter.
- solid construction and sealing of tube by 2 'O' rings.
- manual connection and disconnection with a flat spanner to secure gripping of tube,
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
- solid construction and sealing of tube by 2 'O' rings.
- manual connection and disconnection with a flat spanner to secure gripping of tube,
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
Strengths
• Robust
• Designed for mechanically demanding environments
• Excellent pressure and temperature resistance
• Stamped brass forgings for increased service life• Secure & Reliable
• Perfect sealing guaranteed by the three rings
• The two sealing O-rings positioned before the gripping ring endure no scratching on the tube in the sealing area
• Manual connection for time-saving
• No fluid loss
• Tube cannot be disconnected without the use of a spanner
• Up to 60 bar with rigid polymer or grooved metal tubing
• 100% leak-tested in production
• Designed for mechanically demanding environments
• Excellent pressure and temperature resistance
• Stamped brass forgings for increased service life• Secure & Reliable
• Perfect sealing guaranteed by the three rings
• The two sealing O-rings positioned before the gripping ring endure no scratching on the tube in the sealing area
• Manual connection for time-saving
• No fluid loss
• Tube cannot be disconnected without the use of a spanner
• Up to 60 bar with rigid polymer or grooved metal tubing
• 100% leak-tested in production
Applications
• Machine Tools
• Primary Metal Refining & Processing
• Miscellaneous Manufacturing
• Construction Equipement
• Transportation
• Industrial Fluids Conveying at Medium Pressure
• Lubrication
• Measurement Systems
• Suitable for Vacuum Applications
Technical specifications
Attributes
| Logistic Weight | 44 g |
|---|---|
| Package weight | 454 g |
| Exterior tube diameter | 19 mm |
| Min. temperature | -40 °C |
| Max. temperature | 120 °C |
| 60 mm | |
| 60 mm |
