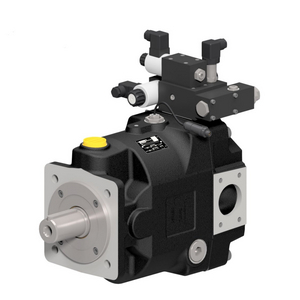

PARKER PV046R1K1T1NMMC4645 PV046R1K1T1NMMC
Axial Piston Pumps Variable
References
parker hannifin:PV046R1K1T1NMMC
rubix:154A9770
manufacturer :PV046R1K1T1NMMC
Technical specifications
| Type | axial piston pumps variable |
|---|---|
| Max flow | 69 l/min |
| Nominal pressure | 350 bar |
Product details : PARKER PV046R1K1T1NMMC4645 PV046R1K1T1NMMC
Premium quality hydraulic mineral fluid is recommended, like HLP oils to DIN 51524 (part 2 & 3) or ISO6743/4 (HM & HV). Brugger-value recommended to be 30 N/mm2 minimum for general application and 50 N/mm2 for heavily loaded hydraulic equipment and fast cycling machines and/or high dynamic loads, measured in accordance with DIN 51 347-2. See also Document MSG30-3248/UK Parker Hydraulic Fluids.
Strengths
•Low noise level
Fast response
Service-friendly High self-priming speed
Compact design
Through drive for 100 % nominal torque
Fast response
Service-friendly High self-priming speed
Compact design
Through drive for 100 % nominal torque
Technical specifications
Attributes
| Type | axial piston pumps variable |
|---|---|
| Max flow | 69 l/min |
| Nominal pressure | 350 bar |
| Max speed | 2800 rpm |
Show UNSPSC/ECL@SS
£ 4,918.80 excl. VAT
/ Each
£ 5,902.56 incl. VAT
Usually arrives within 14 working days
