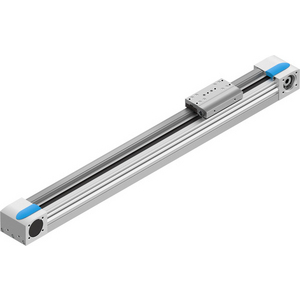

FESTO 3012494 TOOTHED BELT AXIS
Ball Screw Linear Actuator
References
festo:EGC-70-500-TB-KF-0H-GK
rubix:264A6195
manufacturer :3012494
ean:4052568268114
Technical specifications
| Type | ball screw linear actuator |
|---|---|
| Cylinder diameter | 70 mm |
Product details : FESTO 3012494 TOOTHED BELT AXIS
toothed belt axis EGC-70-500-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=24,83 mm, Working stroke=500 mm, Size=70, Stroke reserve=0 mm, Toothed-belt stretch=0,08 %
Technical specifications
Attributes
| Type | ball screw linear actuator |
|---|---|
| Cylinder diameter | 70 mm |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 500 mm |
| Fixation centre-to-centre distance | 56 mm |
| Design size | 70 |
Show UNSPSC/ECL@SS
£ 988.12 excl. VAT
/ Each
£ 1,185.74 incl. VAT
Usually arrives within 14 working days
