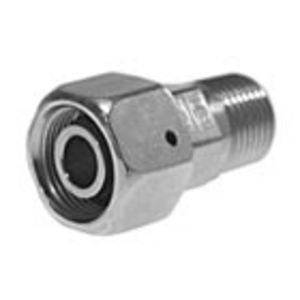

PARKER EO-SWIVEL-CONNECTOR EGE14SREDCF
DIN Male Stud High Pressure Hydraulic Tube Fitting
References
parker hannifin:EGE14SREDCF
rubix:156A4452
Technical specifications
| Material | Steel |
|---|---|
| Type | Ermeto DIN Male Stud |
| Threading diameter (inch) | G 1/2A BSPP '' |
Product details : PARKER EO-SWIVEL-CONNECTOR EGE14SREDCF
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel
Strengths
High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
Stainless steel surface: Ermeto DIN male stud high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
High pressure: Ermeto DIN male stud high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
Stainless steel surface: Ermeto DIN male stud high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
High pressure: Ermeto DIN male stud high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
Applications
Agriculture Equipment; Automotive Process; Chemical Transfer; Construction Equipment; Fuel transfer; Hydraulic; Manufacturing Equipment; Marine; Material Handling; Mobile Equipment; Oilfield; Packaging; Transportation
Technical specifications
Attributes
| Material | Steel |
|---|---|
| Type | Ermeto DIN Male Stud |
| Threading diameter (inch) | G 1/2A BSPP '' |
| Min. service pressure | 100 bar |
| Max. service pressure | 800 bar |
| Exterior tube diameter | 14 mm |
| Connecting diameter 2 (metric) | 14 mm |
| Min. temperature | -40 °C |
| Max. temperature | 250 °C |
Show UNSPSC/ECL@SS
£ 18.34 excl. VAT
/ Each
£ 22.01 incl. VAT
Usually arrives within 14 working days
