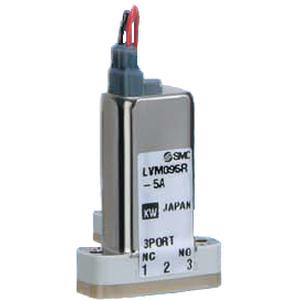

SMC LVM095R-5C-Q CHEMICAL VALVE

2/3-Port Solenoid Valve for Chemical Liquids
Applicable fluid: Chemical liquids
Flow rates up to 0.9 l/min (water) and 57 l/min (air)
Isolated structure
With power saving circuit
2 models: Base mounted and Body ported.

•Orifice diameter: 1 or 1.1 mm.
•Available with power-saving circuit.
•2 port N.C. or N.O. types; 3 port Universal type.
•2 models: Base mounted and Body ported.
•Diaphragm choice of EPDM, FKM or Kalrez®.
•Wetted part material: PEEK.

Symbol: 095R (3 Port, Universal - Base mounted)
Configuration: Standard
Rated Voltage: 5 (24VDC)
Wetted Part Material: C (Plate
Diaphragm: Kalrez®)
Reverse Mounting Prevention Pin: None
Electrical Entry: Grommet
Lead Wire Length: 150mm [Or none (KO/KOZ), or 300mm (K/KZ)]
CE Compliant: Q (CE Compliant)
