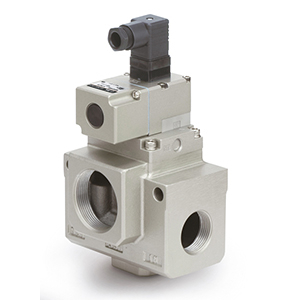

SMC VP3165-105DZA-Q SOLENOID VALVE

High flow capacity:Cv1.0 (VP300), Cv2.3 (VP500), Cv4.0 (VP700). Low power consumption: 1.8W(DC).Possible to use as either selector valve or divider valve.Changeable from normallyclosed style to normally open style. Vacuum applicable: Up to –101.2kPa.

•Port size: 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
•Body ported, Base mounted
•Normally Closed or Normally Open (Changeable).

Body Size: 6 (1)
Valve Option: For General
Port Size: 10 (Rc 1, 25A)
Rated voltage: 5 (24 VDC)
Electrical Entry: DZ (DIN Terminal w/Light and Surge Voltage Suppressor)
Type of actuation: A [Normally closed (N.C.)]
Pilot: Internal Pilot
Thread Type: Rc
