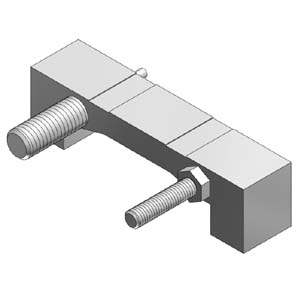

SMC MY3B-A16L1 MECHANICALLY COUPLED RODLESS CYLINDER

Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.

•Low load shock absorber + adjusting bolt (L unit)

High load shock absorber + adjusting bolt (H unit)
•Applicable to ø16, ø20, ø25, ø32, ø40, ø50 and ø63mm bore sizes

Applicable Bore Size: 16mm
Unit: L (Low Load Shock Absorber)
Side: 1 (Left)
