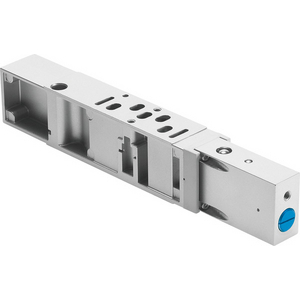

FESTO 542885 VERTICAL PRESSURE SHUT-OFF PLATE VABF-S4-1-L1D1-C

vertical pressure shut-off plate VABF-S4-1-L1D1-C For valve terminals VTSA and VTSA-F, standard port pattern to 15407-2, for Mounting between manifold sub-base and valve, supply pressure of the terminal is blocked. Dismantling of the valve is possible without shutting off the pressure of the terminal. Width=26 mm, Based on the standard=ISO 15407-2, Assembly Position=Any, Operating pressure=3 - 10 bar, Operating medium=Compressed Air in accordance with ISO8573-1:2010 [7:4:4]
