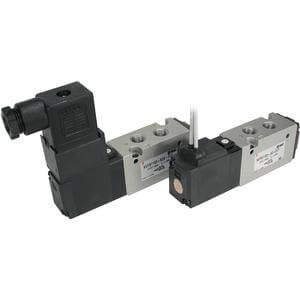

SMC VFS1220-5D-01F-Q 5 PORT SOLENOID VALVE

Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.

•VFS1000, body ported type valve
•Thread: Rc(PT)
•Fluid: air and inert gas
•Maximum operating pressure: 0,99 MPa;
•Ambient & fluid temperature: -10 to 60°C
•Manual override: non locking push style

Function: 2 (2 Position Double)
Piping: 20 (Body Ported/Individual Pilot EXH)
Voltage: 5 (24VDC)
Lead Wire: D (DIN Terminal w/Connector)
Surge Suppressor: None
Manual Override: Non-locking Push Style (Flush)
Thread: F (G)
Option: None
CE Marked: Q (CE Marked)
