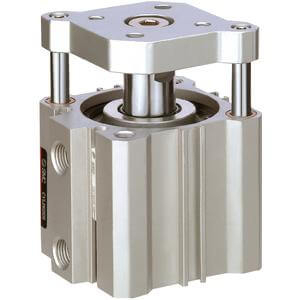

SMC CQMB25-35 GUIDE ROD TYPE COMPACT CYLINDER
C(D)QM (ø12 to ø32), Compact Cylinder, Guide Rod Type
References
smc:CQMB25-35
rubix:393A2989
manufacturer :CQMB25-35
Technical specifications
| Type | Compact Cylinder |
|---|---|
| Cylinder diameter | 25 mm |
| Cylinder stroke | 35 mm |
Product details : SMC CQMB25-35 GUIDE ROD TYPE COMPACT CYLINDER
The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°.
Strengths
Guide rod type compact cylinder
Bore sizes (mm): 12, 16, 20, 25, 32
Standard strokes (mm): 5 to 100
4 times the lateral load resistance of the CQ2K
Non-rotating accuracy 0.2 or less
Technical specifications
Attributes
| Type | Compact Cylinder |
|---|---|
| Cylinder diameter | 25 mm |
| Cylinder stroke | 35 mm |
| Min. temperature | -10 °C |
| Max. temperature | 70 °C |
Show UNSPSC/ECL@SS
£ 72.07 excl. VAT
/ Each
£ 86.48 incl. VAT
Usually arrives within 14 working days
