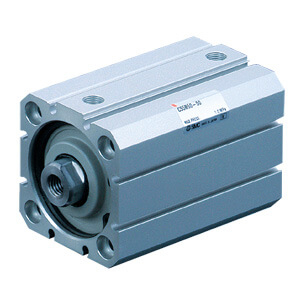

SMC CD55B50-35-X1439 ISO 21287 CYLINDER
Compact Cylinder
References
smc:CD55B50-35-X1439
rubix:110A7295
manufacturer :00166077
Technical specifications
| Type | Double Acting (D/A) |
|---|---|
| Cylinder diameter | 50 mm |
Product details : SMC CD55B50-35-X1439 ISO 21287 CYLINDER
ISO 21287 Compact Cylinder.
Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100.
Standard strokes up to 150 mm.
Cylinder variations: ATEX.
Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100.
Standard strokes up to 150 mm.
Cylinder variations: ATEX.
•Conforms with the ISO 21287 standard.
•Bore sizes of 20, 25, 32, 40, 50 & 63 mm.
•Large stroke range from 5 mm up to 150 mm.
•Construction is similar to the current CQ2 lateral load resistant specification.
•Snap ring construction allows easy and quicker maintenance.
•Auto Switch Mounting Groove: T-slot Type.
Built-in Magnet: D (With Magnet)
Mounting Style: B (Standard)
Bore Size: Ø50 mm
Stroke: 35 mm
Rod End Thread: Rod End Female Thread
Auto Switch: Without Autoswitch
Number: 2 pcs. [Or None in the Case of No Switch]
•Bore sizes of 20, 25, 32, 40, 50 & 63 mm.
•Large stroke range from 5 mm up to 150 mm.
•Construction is similar to the current CQ2 lateral load resistant specification.
•Snap ring construction allows easy and quicker maintenance.
•Auto Switch Mounting Groove: T-slot Type.
Built-in Magnet: D (With Magnet)
Mounting Style: B (Standard)
Bore Size: Ø50 mm
Stroke: 35 mm
Rod End Thread: Rod End Female Thread
Auto Switch: Without Autoswitch
Number: 2 pcs. [Or None in the Case of No Switch]
Strengths
•Conforms with the ISO 21287 standard
Bore sizes of 20, 25, 32, 40, 50, 63, 80 and 100?mm
Large stroke range from 5 mm up to 150 mm
Construction is similar to the current CQ2 lateral load resistant specification
Snap ring construction allows easy and quicker maintenance
Auto switches can be mounted on any of the four sides of the cylinder tube
Bore sizes of 20, 25, 32, 40, 50, 63, 80 and 100?mm
Large stroke range from 5 mm up to 150 mm
Construction is similar to the current CQ2 lateral load resistant specification
Snap ring construction allows easy and quicker maintenance
Auto switches can be mounted on any of the four sides of the cylinder tube
Technical specifications
Attributes
| Logistic Weight | 723 g |
|---|---|
| Type | Double Acting (D/A) |
| Cylinder diameter | 50 mm |
| Max. service pressure | 10 bar |
Show UNSPSC/ECL@SS
£ 91.28 excl. VAT
/ Each
£ 109.54 incl. VAT
Delivery usually within ( 7 ) days
