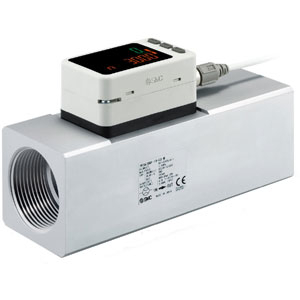

Digital flow switch for large flow
Applicable fluid: Air, N2
Flow ratio: 100:1
Modular type available
3-colour 2-line information display
Outputs: IO-Link, NPN/PNP and analogue/external input
Rated flow ranges: from 10 to 12000 l/min
Repeatability: ±1.0 % F.S.
IP65.

•Applicable fluid: Air, N2.
•Flow range: Max. 12000 L/min.
•Flow ratio: 100:1.
•3-color/ 2-screen display.
•Port Size: 1, 1 1/2, 2.
•Outputs: NPN/PNP and Analogue/External input.
•IP65.

Rated Flow Range: 03 (30 to 3000 l/min)
Thread Type: F [G (ISO 1179-1 Compliant)]
Port Size: 10 (1)
Output Specifications: ES (Out
Func: Analog Voltage Ouput <-> External Input)
Lead Wire: w/Lead Wire and M12 Connector, 3m
Unit Specification: Units Selection Function
Calibration Certificate: None, Certificate in both English and Japanese

Technical specifications

Attributes

Type	Digital Air Flow Sensor
Material	Aluminium Alloy (Body);PPS (Branch Passage, Sensor Base);HNBR (Gasket);Au, Pt, Al₂O₃ (Sensor)

Show UNSPSC/ECL@SS

£ 780.40 ^{excl. VAT}

/ Each

£ 936.48 ^{incl. VAT}

Delivery usually within ( 4 ) days

SMC PF3A703H-F10-ES DIGITAL FLOW SWITCH FOR LARGE FLOW

Product details : SMC PF3A703H-F10-ES DIGITAL FLOW SWITCH FOR LARGE FLOW
