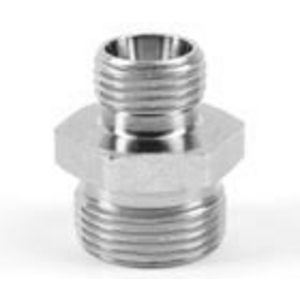

PARKER EO-STRAIGHT-REDUCER GR14/12SCFX
DIN Tube to Tube High Pressure Hydraulic Tube Fitting
References
parker hannifin:GR14/12SCFX
rubix:156A7860
Technical specifications
| Material | Steel |
|---|---|
| Type | Straight Reducer |
Product details : PARKER EO-STRAIGHT-REDUCER GR14/12SCFX
The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of fittings is available in steel with Cr-(VI)-free surfaces and in stainless steel
Strengths
High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute helps to extends the life cycle of the fittings
Stainless Steel surface: Ermeto DIN tube to tube high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications
High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications
Stainless Steel surface: Ermeto DIN tube to tube high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications
High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications
Applications
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
Technical specifications
Attributes
| Material | Steel |
|---|---|
| Type | Straight Reducer |
| Min. service pressure | 100 bar |
| Max. service pressure | 800 bar |
| Min. temperature | -40 °C |
| Max. temperature | 250 °C |
| Exterior tube diameter | 14 mm |
| Connecting diameter 2 (metric) | 12 mm |
Show UNSPSC/ECL@SS
£ 20.86 excl. VAT
/ Each
£ 25.03 incl. VAT
Usually arrives within 14 working days
