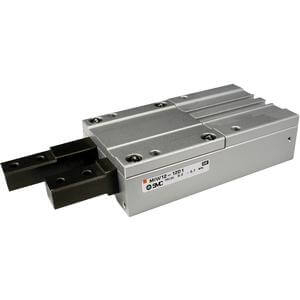

SMC MIW8-8D ESCAPEMENT

Series MIW is a slider guide cylinder, with two sequentially operating fingers. The sequential operation uses a mechanically interlocking cam mechanism in addition to control of air passage to the pistons for reliable separation of work pieces. Separation of the piston and fingers allows easy replacement of fingers for maintenance. Three different finger variations make it possible to freely select attachment mounting surfaces on the fingers.

•Bore sizes: 8, 12, 20, 25, 32 mm
•Stroke lengths: 10, 20, 30, 50 mm
•Scraper option
•Stroke adjuster option
•Auto-switch capable

Bore Size: 8mm
Thread: M Thread
Stroke: 8mm
Finger Option: Basic Style (Standard)
Stroke Adjusting Unit: No
Scraper: No
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
