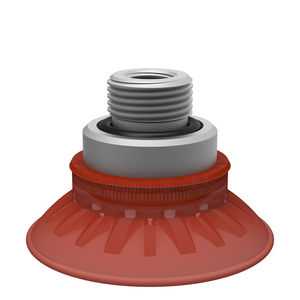

PIAB FC50P.4C.05UB CUP 0103289
Flat concave suction cups FCP Polyurethane
See technical informationSee documentsReferences
Piab:0103289
Rubix:120A7416
Manufacturer :0103289
Documents
Product details : PIAB FC50P.4C.05UB CUP 0103289
DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably. Also available in oval shape for oblong objects.
Strengths
Suitable for lifting small objects and narrow parts, also slightly domed, flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
The suction cups have cleats that prevent thin objects from being disfigured.
DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Applications
Exterior and interior trim components assembly
Technical specifications
Attributes
| Material | polyurethane 50 (pu) |
|---|---|
| Diameter | 50 mm |
| Shape | flat |
| Type | g3/8 male, 1/8 npsf female |
Show UNSPSC/ECL@SS
£ 36.68 excl. VAT
/ Each
£ 44.02 incl. VAT
- Usually arrives within 14 working days
