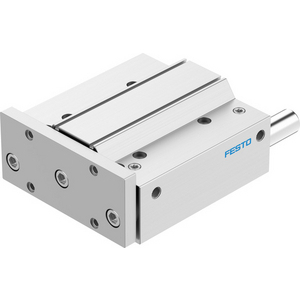

FESTO 170897 GUIDED DRIVE DFM-100-160-P-A-GF
Guided Actuator
References
festo:DFM-100-160-P-A-GF
rubix:114A1731
manufacturer :170897
ean:4052568139919
Technical specifications
| Type | guided actuator |
|---|---|
| Cylinder diameter | 100 mm |
Product details : FESTO 170897 GUIDED DRIVE DFM-100-160-P-A-GF
Guide cylinder DFM-100-160-P-A-GF With integrated guide. Centre of gravity Distance from working load to yoke plate=125 mm, Stroke=160 mm, Piston diameter=100 mm, Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates at both ends
Technical specifications
Attributes
| Logistic Weight | 18900 g |
|---|---|
| Type | guided actuator |
| Cylinder diameter | 100 mm |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| Cylinder stroke | 160 mm |
| Max. service pressure | 10 bar |
| Design size | 100 |
Show UNSPSC/ECL@SS
£ 1,077.65 excl. VAT
/ Each
£ 1,293.18 incl. VAT
Delivery usually within ( 6 ) days
