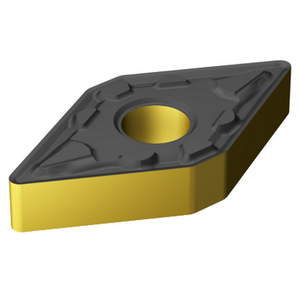

SANDVIK DNMG 15 06 08-MM 2220 P INSERT FOR TURNING 7231389

The DNMG 15 06 08-MM 2220, T-Max® P turning insert from Sandvik Coromant offers high precision and optimized surface quality. Suitable for pre-machining applications, this DN1506 cemented carbide insert offers excellent wear resistance thanks to its CVD TiCN+Al2O3+TiN coating. Its 55° rhombic format with four cutting edges enables efficient machining with a main clearance angle of 0°. Cylindrical hole fixing ensures high stability, reducing vibration and improving tool life. Its 2220 grade, combining an HC substrate and a high-performance coating, ensures high thermal resistance and robustness in the face of the challenges of machining ISO M materials (stainless steels).

Specifications:
- Main angle of attack (KAPR): 93°
- Depth of cut (0.5 - 6.4): ap 3mm
- Feed per revolution (0.1 - 0.45 mm/r): fn 0.25mm
- Chip width (0.1 - 0.45) = hex 0.25 mm/r
- Cutting speed (285 - 155)= 210 m/min
- Chip width (hex): 0.1 - 0.45 mm/r
- Cutting speed (vc): 285 - 155 m/min
- Material classification (TMC1 ISO): M
- Chipbreaker: MM
- Type of operation: Pre-machining with surface requirement
- Fixture: Cylindrical hole
- Mounting hole diameter (D1): 5.156 mm
- Insert shape and size: DN1506
- Number of cutting edges: 4
- Inscribed circle diameter (IC): 12.7 mm
- Insert shape code: Rhombic 55°
- Effective cutting edge length (LE): 14.7038 mm
- Beak radius (RE): 0.7938 mm
- Direction: Neutral
- Grade: 2220
- Substrate: HC
- Coating: CVD TiCN+Al2O3+TiN
- Wafer thickness (S): 6.35 mm
- Main draft angle (AN): 0°
- Element weight: 0.0134 kg
- Wafer housing dimension code (SSC\_M): 15
- View in imperial units of insert size code (SSC\_N): 1/2
