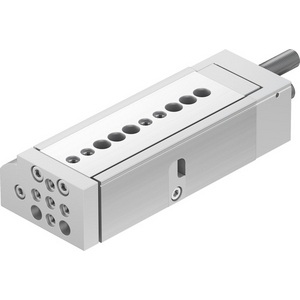

FESTO 543965 MINI SLIDE DGSL-12-50-PA
Mini slide, metric DGSL
References
festo:DGSL-12-50-PA
rubix:114A1422
manufacturer :543965
ean:4052568183097
Technical specifications
| Type | Mini Slide |
|---|---|
| Cylinder diameter | 16 mm |
Product details : FESTO 543965 MINI SLIDE DGSL-12-50-PA
Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit
Strengths
- High load capacity and positioning accuracy
- Maximum movement precision thanks to ground-in ball bearing cage guide
- Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants
- Variants with clamping unit or end-position locking for fixing the guide slide
- Wide variety of mounting and attachment options
- Compact design
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 170x87x87 mm |
|---|---|
| Logistic Weight | 964,2 g |
| Type | Mini Slide |
| Cylinder diameter | 16 mm |
| Min. temperature | 0 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 50 mm |
| Max. service pressure | 8 bar |
| Fixation centre-to-centre distance | 10 mm |
| Design size | 16 |
Show UNSPSC/ECL@SS
£ 643.62 excl. VAT
/ Each
£ 772.34 incl. VAT
Delivery usually within ( 11 ) days
