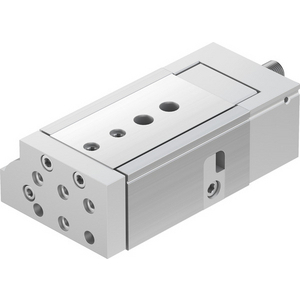

FESTO 570196 MINI SLIDE
Mini slide, metric DGSL
References
festo:DGSL-20-20-EA
rubix:390A6917
manufacturer :570196
ean:4052568216917
Technical specifications
| Type | mini slide |
|---|---|
| Cylinder diameter | 25 mm |
Product details : FESTO 570196 MINI SLIDE
Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit
Strengths
- High load capacity and positioning accuracy
- Maximum movement precision thanks to ground-in ball bearing cage guide
- Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants
- Variants with clamping unit or end-position locking for fixing the guide slide
- Wide variety of mounting and attachment options
- Compact design
Technical specifications
Attributes
| Logistic Weight | 1866,45 g |
|---|---|
| Type | mini slide |
| Cylinder diameter | 25 mm |
| Min. temperature | 0 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 20 mm |
| Max. service pressure | 8 bar |
| Fixation centre-to-centre distance | 20 mm |
| Design size | 25 |
Show UNSPSC/ECL@SS
£ 493.32 excl. VAT
/ Each
£ 591.98 incl. VAT
Usually arrives within 14 working days
