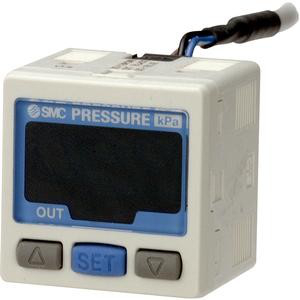

SMC PSE543-R06 PRESSURE SENSOR
Pneumatic Pressure Sensor
References
smc:PSE543-R06
rubix:128A5954
Technical specifications
| Type | compound pressure -100 to 100 kpa |
|---|---|
| Execution | plug-in reducers ø 6 |
| Min. tension | 12 V |
Product details : SMC PSE543-R06 PRESSURE SENSOR
Digital pressure switch
Pressure rates: up to 10 MPa
Accuracy: up to 1% F.S.
Output: IO-Link, NPN/PNP or analogue (Voltage/Current)
Enclosure up to IP65.
Pressure rates: up to 10 MPa
Accuracy: up to 1% F.S.
Output: IO-Link, NPN/PNP or analogue (Voltage/Current)
Enclosure up to IP65.
•Compact pressure sensor for pneumatics
•Proof pressure: 500kPa
•Accuracy (ambient temp. of 25°C): ¹2%F.S. or less
•Repeatability: ¹0.2%F.S. or less
•Enclosure: IP40
Sensor Range: 3 [For Compound Pressure (-100~100kPa)]
Accuracy: ±2%F.S.
Port Size: R06 (Ø6 Plug-In Reducer)
Option: None
•Proof pressure: 500kPa
•Accuracy (ambient temp. of 25°C): ¹2%F.S. or less
•Repeatability: ¹0.2%F.S. or less
•Enclosure: IP40
Sensor Range: 3 [For Compound Pressure (-100~100kPa)]
Accuracy: ±2%F.S.
Port Size: R06 (Ø6 Plug-In Reducer)
Option: None
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 28x30x10 mm |
|---|---|
| Logistic Weight | 45 g |
| Type | compound pressure -100 to 100 kpa |
| Execution | plug-in reducers ø 6 |
| Min. tension | 12 V |
| Max. tension | 24 V |
Show UNSPSC/ECL@SS
£ 60.24 excl. VAT
/ Each
£ 72.29 incl. VAT
Delivery usually within ( 4 ) days
