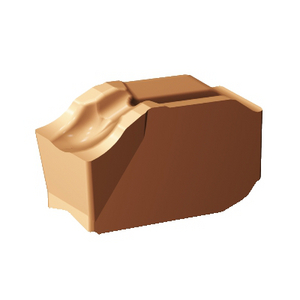

SANDVIK QD-NG-0300-0002-CM 1125 QD INSERT FOR PARTING 6427384

The CoroCut® QD insert from Sandvik Coromant is designed for precision parting. It is specially designed for pre-machining operations with high surface quality requirements, guaranteeing clean, precise cuts. Its design ensures excellent stability and efficient chip control, enhancing surface quality and precision of machined parts. Its concave prismatic section ensures great stability, minimizing vibration and maintaining high precision throughout machining. This insert in grade 1125 is coated with PVD TiAlN, giving it high heat resistance and enabling high cutting speeds. This coating also improves resistance to oxidation, reducing the adhesion of machined materials and ensuring greater thermal stability, thus extending insert life. With a 3 mm cutting width and precise tolerances (-0.05 mm / +0.05 mm), it meets the demands of processes requiring precise adjustment. Its PMKNS classification enables it to work on a wide range of materials, including steels, stainless steel, cast iron, non-ferrous metals such as aluminum or copper, and superalloys.

Specifications:

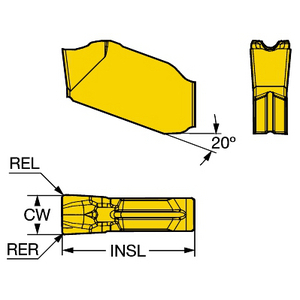

- Cutting width: 3 mm
- Lower tolerance on cutting width: -0.05 mm
- Upper tolerance on cutting width: 0.05 mm
- Left-hand nose radius: 0.2 mm
- Beak radius right: 0.2 mm
- Lower beak radius tolerance: -0.05 mm
- Upper beak radius tolerance: 0.05 mm
- Machine-side body angle: 0°
- Direction: Neutral
- Number of cutting edges: 1
- Insert housing: G
- Grade: 1125
- Coating: PVD TiAlN
- Insert thickness: 3.1 mm
- Main clearance angle: 7°
- Weight: 0.0011 kg
- Mounting type: Concave prismatic section
- Material classification: PMKNS
- Chipbreaker code: CM
- Type of operation: pre-machining with surface requirement.
