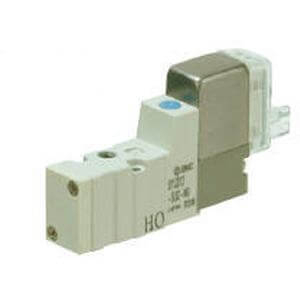

SMC SYJ314-5LOU-Q SOLENOID VALVE

The SYJ valve is an innovative combination of space-saving efficiency and superior performance, adding real value to this series. Whether used on a sub-base or as an individual valve, its slim profile increases design flexibility and reduces space requirements. The SYJ valve uses a low-power pilot design (0.5 watts as standard), which drastically reduces thermal heat generation. This improves performance, reduces operating costs, and enables direct control via PLC output relays. All SYJ valve electrical connections are available with indicator lights and circuit protection against overvoltage. SYJ series valves can be configured on sub-bases for sub-base mounting, or individually on sub-bases, offering a wide range of solutions to suit your engineering needs.

•Fluid: air

Operating pressure range (MPa): 0.15 to 0.7

Ambient and fluid temperature (°C): -10 to 50 (no freezing)

Maximum operating frequency (Hz): 10

Function: 1 (Normally Closed)
Piping: 4 (Base Mounted)
Body Option: None
Specifications: Standard
Voltage: 5 (24VDC)
Lead Wire: LO (L Plug w/o Connector)
Connector Cable: None
Surge Suppressor: U (Surge Suppressor w/Light Non-polar)
Manual Override: None
Port Size: w/o Subplate
Option: None
CE Marked: Q (CE Marked)
