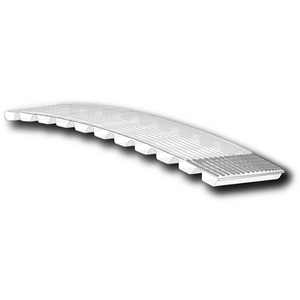

GATES 776280758 SYNCHRO-POWER SLEEVE SYNCHRONOUS BELT DL-T5-750-32

Synchro-Power Polyurethane Belt

See technical informationSee documents

References

Gates:DL PU T5 750 32
Rubix:105A4428
Manufacturer :776280758
EAN:5414465230226
brand logo

Technical specifications

Profiledl-t5
Primitive length750 mm
Belt width32 mm
See all Specifications

Documents

Product details : GATES 776280758 SYNCHRO-POWER SLEEVE SYNCHRONOUS BELT DL-T5-750-32

Belts are designed for light power transmission.

Strengths

Wide range of tooth profiles to meet all application requirements
Clean, quiet and smooth-running operation
No re-tensioning or lubrication required
Resistance to an extensive temperature range from -30°C to 70°C
Suited for use in harsh environments
Broad application range: automatic assembly operations, horizontal and vertical doors, printing applications, conveying equipment, textile industry, packaging machinery

Technical specifications

Attributes
Profiledl-t5
Primitive length750 mm
Belt width32 mm
Pitch5 mm
Materialpolyurethane
Number of teeth150
Height3.4 mm
£ 24.40 excl. VAT
/ Each
£ 29.28 incl. VAT
  • Usually arrives within 14 working days
