References
SMC:C96SDB40-800C
Rubix:2600138
Manufacturer :01295902
Technical specifications
| Cylinder diameter | 40 mm |
|---|---|
| Cylinder stroke | 800 mm |
| Type | tie-rod cylinder |
Documents

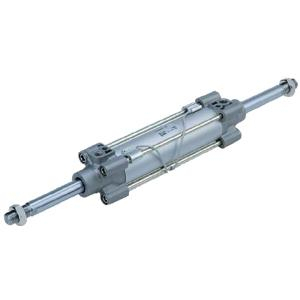

Product details : SMC C96SDB40-800C ISO 15552 CYLINDER
Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.
Technical specifications
Attributes
| Cylinder diameter | 40 mm |
|---|---|
| Cylinder stroke | 800 mm |
| Type | tie-rod cylinder |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
| Max. service pressure | 10 bar |
| Reaming diameter | 16 mm |
| Material | aluminium alloy |
Show UNSPSC/ECL@SS
£ 155.53 excl. VAT
/ Each
£ 186.64 incl. VAT
- Delivery usually within ( 4 ) days
