WALTER TNMG160408-RM5 WSM20S TURNING INSERTS (NEGATIVE) 6944750

Turning inserts

See technical information

References

Walter:TNMG160408-RM5 WSM20S
Rubix:291A5040
Manufacturer :6944750
brand logo

Technical specifications

Insert Typetnmg160408-rm5
Nuance/shadewsm20s
See all Specifications

Product details : WALTER TNMG160408-RM5 WSM20S TURNING INSERTS (NEGATIVE) 6944750

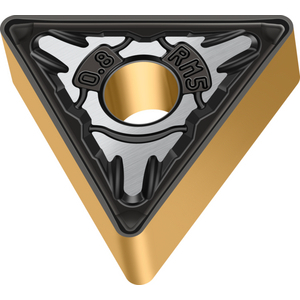

Walter insert TNMG160408-RM5 WSM20S 60° negative-triangular insert with RM5 chipbreaker. Designed for turning ISO M/S materials with good wear resistance and process reliability.

Technical specifications

Attributes
Insert Typetnmg160408-rm5
Nuance/shadewsm20s
Edge length16.5 mm
Thickness4.76 mm
Radius0.8 mm
Insert Size9.53 mm
£ 14.77 excl. VAT
/ Each
£ 17.72 incl. VAT
  • Usually arrives within 14 working days
