FESTO 188330 SHORT-STROKE CYLINDER AEVC-100-10-A-P
AEVC short stroke cylinder
References
festo:AEVC-100-10-A-P
rubix:113A5077
manufacturer :188330
ean:4052568149345
Technical specifications
| Type | AEVC Short-stroke cylinder |
|---|---|
| Cylinder diameter | 100 mm |
Product details : FESTO 188330 SHORT-STROKE CYLINDER AEVC-100-10-A-P

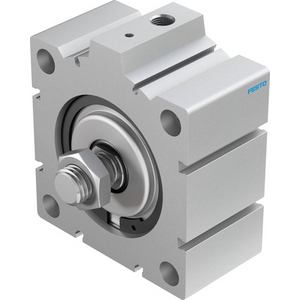

Short stroke cylinder AEVC-100-10-A-P No facility for sensing, piston-rod end with male thread. Stroke=10 mm, Piston diameter=100 mm, Spring return force, retracted=140 N, Based on the standard=(* ISO 6431, * Hole pattern, * VDMA 24562), Cushioning=P: Flexible cushioning rings/plates at both ends
Technical specifications
Attributes
| Logistic Weight | 2050 g |
|---|---|
| Type | AEVC Short-stroke cylinder |
| Cylinder diameter | 100 mm |
| Cylinder stroke | 10 mm |
