SMC CDG1BN100TF-150Z AIR CYLINDER 100 STR 150
Air Cylinder
References
smc:CDG1BN100TF-150Z
rubix:392A7754
Technical specifications
| Cylinder diameter | 100 mm |
|---|---|
| Cylinder stroke | 150 mm |
| Type | air cylinder |
Product details : SMC CDG1BN100TF-150Z AIR CYLINDER 100 STR 150

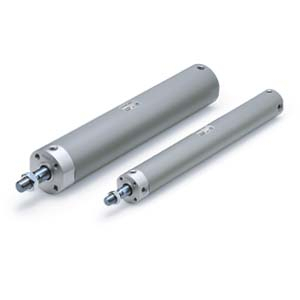

Series CG1 precision air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminium to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Eight mounting options are available. Auto switch capable.
Strengths
•CG1, double acting, single rod cylinder with made-to-order options
Bores sizes *: 20, 25, 32, 40, 50 63 *
Most options are auto switch capable
Available strokes: 25mm to 1500mm depending on bore size
7 mounting
Bores sizes *: 20, 25, 32, 40, 50 63 *
Most options are auto switch capable
Available strokes: 25mm to 1500mm depending on bore size
7 mounting
Technical specifications
Attributes
| Cylinder diameter | 100 mm |
|---|---|
| Cylinder stroke | 150 mm |
| Type | air cylinder |
| Min. temperature | -10 °C |
| Max. temperature | 70 °C |
| Inserted rod height | 332 mm |
Show UNSPSC/ECL@SS
£ 189.02 excl. VAT
/ Each
£ 226.82 incl. VAT
Usually arrives within 14 working days
