Series CM3 double acting, single rod cylinders are a fully functional,compact cylinder used for space saving designs. The CM3 series offers a variety of mounting options and is auto switch capable. The CM3 is now RoHS compliant.

Strengths

•Double acting, single rod
Bore sizes; 20mm, 25mm, 32mm, 40mm
Strokes from25mm through300mm
Mounting: basic, foot, flange, clevis, trunnion
RoHS compliant

Technical specifications

Attributes

Cylinder diameter	20 mm
Cylinder stroke	125 mm
Type	Air Cylinder
Min. temperature	-10 °C
Max. temperature	70 °C
Inserted rod height	234 mm

Show UNSPSC/ECL@SS

£ 65.28 ^{excl. VAT}

/ Each

£ 78.34 ^{incl. VAT}

Usually arrives within 14 working days

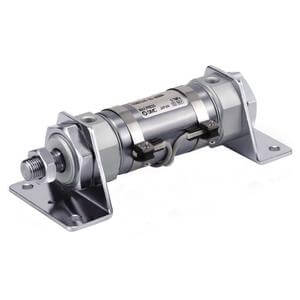

SMC CDM3B20-125 SHORT TYPE AIR CYLINDER

Product details : SMC CDM3B20-125 SHORT TYPE AIR CYLINDER
