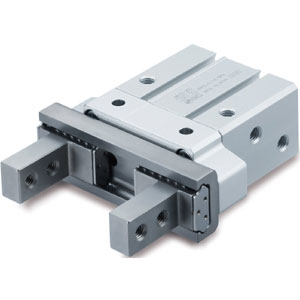

SMC JMHZ2-12D PARALLEL AIR GRIPPER
Air Gripper
References
smc:JMHZ2-12D
rubix:393A7727
manufacturer :JMHZ2-12D
Technical specifications
| Type | Air Gripper |
|---|---|
| Cylinder diameter | 12 mm |
| Cylinder stroke | 6 mm |
Product details : SMC JMHZ2-12D PARALLEL AIR GRIPPER
The MHZ2 series is a standard type parallel air gripper, taking the place of the MHQ(G)2 series. A linear guide provides high rigidity and high accuracy. MHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved.
Strengths
Bore sizes (mm): 8, 12, 16, 20
Single/double-acting
Repeatability: ±0.01 mm
Compact auto switches can be mounted directly.
Technical specifications
Attributes
| Type | Air Gripper |
|---|---|
| Cylinder diameter | 12 mm |
| Cylinder stroke | 6 mm |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 282.67 excl. VAT
/ Each
£ 339.20 incl. VAT
Usually arrives within 14 working days
