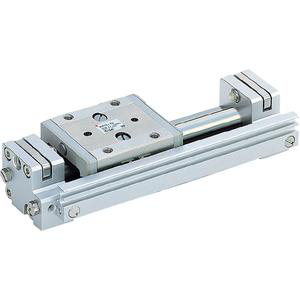

SMC MXY6-50 AIR SLIDE TABLE
Air Slide Table
References
smc:MXY6-50
rubix:2606389
Technical specifications
| Type | Air Slide Table |
|---|---|
| Cylinder diameter | 6 mm |
Product details : SMC MXY6-50 AIR SLIDE TABLE
The MXY series is a long-stroke type of the series MXP air slide table. The MXY comes with a built-in magnetically coupled rodless cylinder. Integrated with a linerar guide, the MXY provides a rigid, compact and lightweight design.
Bore Size: 6mm
Stroke: 50mm
Adjuster: Rubber Stopper
Centralized Piping/Switch Rail: Centralized Piping One Side, w/Switch Rail
Auto Switch: None
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
Stroke: 50mm
Adjuster: Rubber Stopper
Centralized Piping/Switch Rail: Centralized Piping One Side, w/Switch Rail
Auto Switch: None
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 39x144x22 mm |
|---|---|
| Logistic Weight | 340 g |
| Type | Air Slide Table |
| Cylinder diameter | 6 mm |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 50 mm |
| Fixation centre-to-centre distance | 110 mm |
| Design size | 6 |
Show UNSPSC/ECL@SS
£ 455.32 excl. VAT
/ Each
£ 546.38 incl. VAT
Delivery usually within ( 4 ) days
