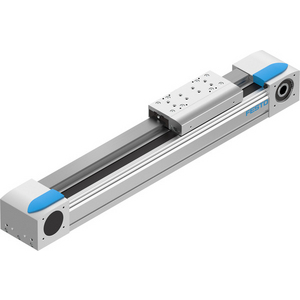

FESTO 3013364 TOOTHED BELT AXIS
Ball Screw Linear Actuator
References
festo:EGC-120-400-TB-KF-0H-GK
rubix:391A0660
manufacturer :3013364
ean:4052568268213
Technical specifications
| Type | Ball Screw Linear Actuator |
|---|---|
| Cylinder diameter | 120 mm |
Product details : FESTO 3013364 TOOTHED BELT AXIS
toothed belt axis EGC-120-400-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=39,79 mm, Working stroke=400 mm, Size=120, Stroke reserve=0 mm, Toothed-belt stretch=0,13 %
Technical specifications
Attributes
| Type | Ball Screw Linear Actuator |
|---|---|
| Cylinder diameter | 120 mm |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 400 mm |
| Fixation centre-to-centre distance | 140 mm |
| Design size | 120 |
Show UNSPSC/ECL@SS
£ 1,549.95 excl. VAT
/ Each
£ 1,859.94 incl. VAT
Usually arrives within 14 working days
