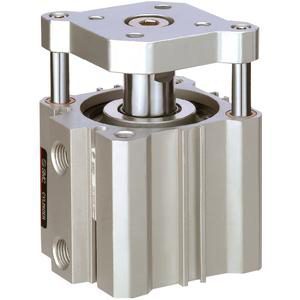

SMC CDQMA40TF-20 GUIDE ROD TYPE COMPACT CYLINDER
C(D)QM (ø40 to ø100), Compact Cylinder, Guide Rod Type
References
smc:00225704
rubix:108A5599
Technical specifications
| Type | compact cylinder |
|---|---|
| Cylinder diameter | 40 mm |
Product details : SMC CDQMA40TF-20 GUIDE ROD TYPE COMPACT CYLINDER
The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°.
Strengths
Guide rod type compact cylinder
Bore sizes (mm): 40, 50, 63, 80, 100
Standard strokes (mm): 5 to 100
4 times the lateral load resistance of the CQ2K
Non-rotating accuracy 0.2 or less
Technical specifications
Attributes
| Type | compact cylinder |
|---|---|
| Cylinder diameter | 40 mm |
| Min. temperature | -10 °C |
| Max. temperature | 70 °C |
| Cylinder stroke | 20 mm |
| Design size | 40 |
Show UNSPSC/ECL@SS
£ 116.25 excl. VAT
/ Each
£ 139.50 incl. VAT
Delivery usually within ( 7 ) days
