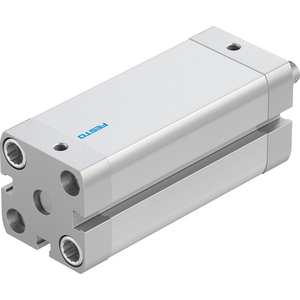

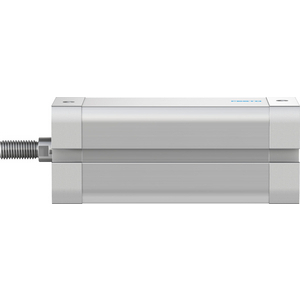

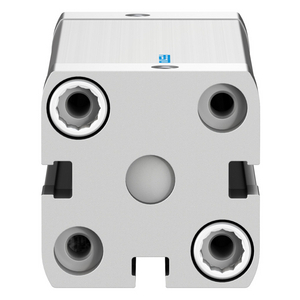

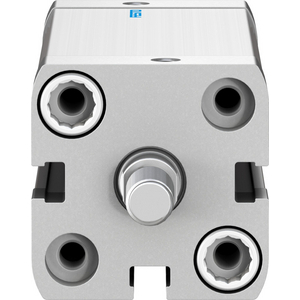

FESTO 8178877 COMPACT CYLINDER
Compact cylinder, double-acting ADN
References
festo:ADN-25-70-A-P-A
rubix:390A4665
manufacturer :8178877
ean:4052568621520
Technical specifications
| Type | Compact Cylinder |
|---|---|
| Cylinder stroke | 70 mm |
Product details : FESTO 8178877 COMPACT CYLINDER
ISO cylinder to ISO 21287 with fixed or self-adjusting cushioning with high variance
Strengths
- ISO 21287
- Up to 50% less installation space than comparable standards-based cylinders to ISO 15552
- Good running performance and long service life
- Wide range of variants for customised applications
- For position sensing
- Variants recommended for production systems for manufacturing lithium-ion batteries
- Sustainable thanks to extended life cycle and easier repairs
Technical specifications
Attributes
| Type | Compact Cylinder |
|---|---|
| Cylinder stroke | 70 mm |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| Max. service pressure | 10 bar |
Show UNSPSC/ECL@SS
£ 43.97 excl. VAT
/ Each
£ 52.76 incl. VAT
Usually arrives within 14 working days
