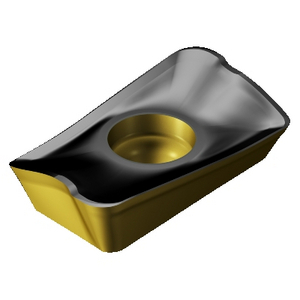

SANDVIK R390-17 04 08M-PM 4340 390 INSERT FOR MILLING 7564382

Sandvik Coromant's R390-17 04 08M-PM 4340 milling insert is an essential component for high-precision milling operations. Designed for optimum performance, this insert ensures excellent machining quality thanks to its advanced geometry and high-end coating.

Features:
This milling insert has been developed to offer exceptional cutting performance and durability. Ideal for shoulder milling, facing and ramping, it is designed for demanding operations involving a variety of materials such as steels and cast irons. Thanks to its 90° rake angle and precise grinding, it ensures clean, precise cuts. Its multi-layer CVD coating, composed of TiCN, Al2O3 and TiN, guarantees increased wear resistance and better heat dissipation, optimizing tool life. Its PM chipbreaker design promotes efficient chip evacuation, reducing the risk of build-up and improving machining stability.

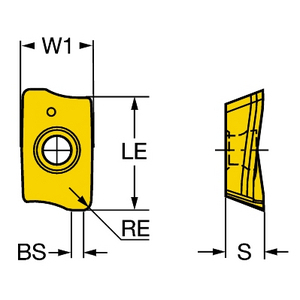

Specifications:
- Insert size: 17.
- Number of cutting edges: 2.
- Effective cutting edge length: 15.7 mm.
- Maximum cutting depth: 16 mm.
- Beak radius: 0.8 mm.
- Main rake angle: 90°.
- Insert width: 9.6 mm.
- Mounting hole diameter: 4.1 mm.
- Insert thickness: 4.7625 mm.
- Coating: CVD (TiCN + Al2O3 + TiN).
- Substrate: HC.
- Cutting direction: right-handed.
- Weight: 4.7 g.
