References
Festo:EB-145-100
Rubix:112A6312
Manufacturer :36490
EAN:4052568115920
Technical specifications
| Type | bellows actuator (eb), double bellows, single acting |
|---|---|
| Nominal pressure | 8 bar |
| Cylinder stroke | 100 mm |
Documents

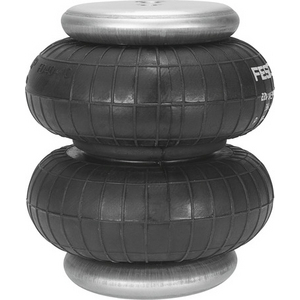

Product details : FESTO 36490 BELLOWS ACTUATOR EB-145-100
Bellows cylinder EB-145-100 Maintenance-free, no stick/slip effect. Size=145, Required installation diameter=160 mm, Stroke=100 mm, Max height when extended=170 mm, Max. tipping angle=30 deg
Technical specifications
Attributes
| Logistic Weight | 1365 g |
|---|---|
| Type | bellows actuator (eb), double bellows, single acting |
| Nominal pressure | 8 bar |
| Cylinder stroke | 100 mm |
| Application | pneumatic bellows actuator, can be used as drive component and air spring (suspension/damping element), suitable for harsh and dusty environments, can be used under water |
Show UNSPSC/ECL@SS
£ 393.99 excl. VAT
/ Each
£ 472.79 incl. VAT
- Delivery usually within ( 2 ) days
