SKF HYDRAULICEASYPULLSET TMMA 75H/SET

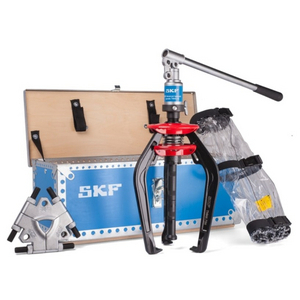

The TMMA 75H/SET is a complete kit developed by SKF for the safe, fast, and effortless removal of bearings and components mounted with a tight fit. It includes the TMMA 75H hydraulic puller, a three-piece TMMS 100 puller plate for direct force transmission to the bearing’s inner ring, and a TMMX 280 safety cover. The entire set is delivered in a sturdy carrying case for easy use and storage.

Features:
The TMMA 75H/SET includes the TMMA 75H hydraulic puller, known for its ease of use and enhanced safety thanks to its integrated hydraulic system. This system comprises a hydraulic cylinder, a pump, and a spindle, all combined into a single, ready-to-use tool. A built-in safety pin protects the unit from overload. The spring-loaded centering tip facilitates alignment with the shaft while preserving its integrity. The spring-loaded opening of the puller’s arms allows for quick and secure positioning behind the component. Finally, the self-centering feature and the spindle tip help prevent any damage to the shaft during disassembly. The TMMS 100 puller plate allows bearings to be removed by applying force directly to the inner ring, thereby minimizing the risk of damage. The TMMX 280 safety cover protects the user during disassembly. The entire assembly features a robust hardened steel construction and an ergonomic design tailored for demanding industrial environments.

Specifications:
- Maximum pulling force: 75 kN
- Maximum outer diameter of the component: 200 mm
- Effective arm length: 200 mm
- External grip width: 52 to 200 mm
- Jaw height: 9.8 mm
- Jaw length: 18 mm
- Total arm length: 327 mm
- Hydraulic cylinder piston stroke: 75 mm
- Total spindle length: 485 mm
- Thread on the puller adapter: UN 1.25 x 12 tpi
- Number of arms: 3
- Spindle nose with centering tip: ⌀ 30 mm
- Total weight of the kit: 15 kg
- Case dimensions (L x H x W): 610 x 260 x 260 mm
