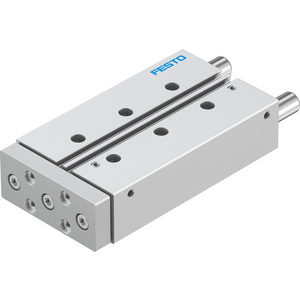

FESTO 8118849 GUIDED DRIVE
Guided drive
References
festo:DFM-20-100-P-A-GF-F1A
rubix:390A6360
manufacturer :8118849
ean:4052568570101
Technical specifications
| Type | Guided Drive |
|---|---|
| Cylinder diameter | 20 mm |
Product details : FESTO 8118849 GUIDED DRIVE
Strengths
•Minimal Space Requirement
Minimal Mounting Time
Choice of supply ports
Wide range of mounting options
High Resistance to Torsion
High Rigidity
Maintenance-Free
With plain-bearing guide:high rigidity thanks to large-di-ameter guide rods and four plain-bearing bushes
With recirculating ball bearing guide:for movements involving torque loads
Minimal Mounting Time
Choice of supply ports
Wide range of mounting options
High Resistance to Torsion
High Rigidity
Maintenance-Free
With plain-bearing guide:high rigidity thanks to large-di-ameter guide rods and four plain-bearing bushes
With recirculating ball bearing guide:for movements involving torque loads
Applications
Terminals;Lifting;Stopping
Technical specifications
Attributes
| Type | Guided Drive |
|---|---|
| Cylinder diameter | 20 mm |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| Cylinder stroke | 100 mm |
| Max. service pressure | 10 bar |
| Fixation centre-to-centre distance | 50 mm |
Show UNSPSC/ECL@SS
£ 233.47 excl. VAT
/ Each
£ 280.16 incl. VAT
Usually arrives within 14 working days
