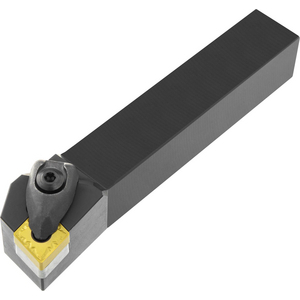

Pramet DCLNR Turning Holder. Turning Holder For CN Style Negative Inserts. For general external turning operations Also available in left hand Permits use of the obtuse edge of a standard CNMG insert Top clamp for increased security Suitable for CNM.0903, CN.1204, CNM.1606 and CNM.1906 inserts
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
