PRAMET DNMG 150604E-FM:T7325 7156285
Pramet Turning Insert
References
pramet:DNMG 150604E-FM:T7325
rubix:376A5650
manufacturer :DNMG150604EFMT7325
ean:3603603164062
Technical specifications
| Nuance/shade | CVD-Al2O3 Coated |
|---|
Product details : PRAMET DNMG 150604E-FM:T7325 7156285
Insert DNMG -FM negative-rake with hole. Finishing and semi-roughing geometry for continuous and sligthly interrupted cut on machining material groups P and M, secondary application K and supplementary application S

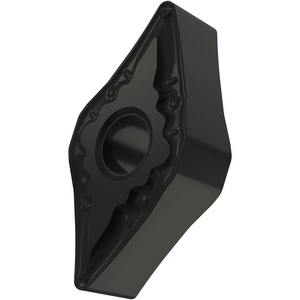

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for fine to medium machining of stainless-steels
Strengths
T7325 grade first choice and most versatile grade for turning stainless steels
Increased operational reliability
It has been developed to complement the existing T7335 grade
First choice for highly productive machining, also suitable for mid unfavorable cutting conditions
Functional gradient substrate
Special coating MT-CVD with textured alpha Al2O3
High cutting edge strength
Resistance to formation of cracks
Versatility
High performance and tool life
Increased operational reliability
It has been developed to complement the existing T7335 grade
First choice for highly productive machining, also suitable for mid unfavorable cutting conditions
Functional gradient substrate
Special coating MT-CVD with textured alpha Al2O3
High cutting edge strength
Resistance to formation of cracks
Versatility
High performance and tool life
Applications
For turning stainless steels
Technical specifications
Attributes
| Nuance/shade | CVD-Al2O3 Coated |
|---|---|
| Thickness | 6.35 mm |
| Radius | 0.4 mm |
Show UNSPSC/ECL@SS
£ 10.53 excl. VAT
/ Each
£ 12.64 incl. VAT
Usually arrives within 14 working days
