Standard series
Wide range of variants: wide selection for maximum flexibility in standard applications
PBT and nickel-plated brass
Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS

Technical specifications

Attributes

Logistic Weight	7,26 g
Connection 1	8 mm
Connection 2	4 mm
Length	36.6 mm
Max. temperature	80 °C
Min. temperature	-10 °C
Material	PBT (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp Component)

Show UNSPSC/ECL@SS

£ 5.18 ^{excl. VAT}

/ Each

£ 6.22 ^{incl. VAT}

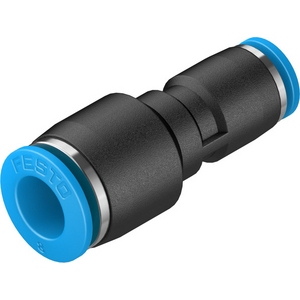

FESTO 130606 PUSH-IN CONNECTOR QS-8-4
