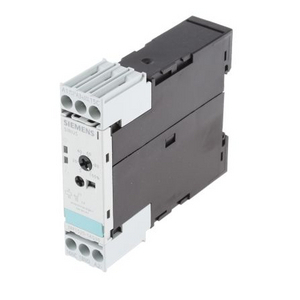

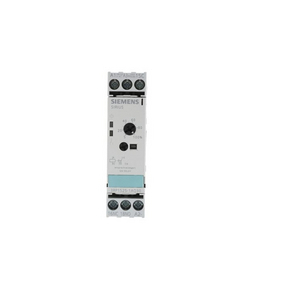

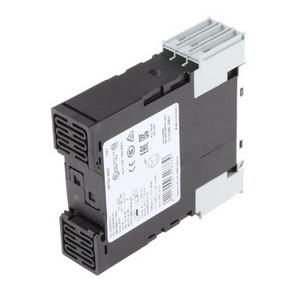

SIEMENS TIME RELAY 3RP1525-1AQ30
Siemens Timer Relay
References
siemens:3RP1525-1AQ30
rubix:161A5311
ean:4011209318779
Product details : SIEMENS TIME RELAY 3RP1525-1AQ30
Siemens 3RP1525-1AQ30 solid state time relay has analogue function and an on-delay time range with an adjustable time of 0.05 seconds to 100 hours. It is made of plastic for corrosion resistance and non-conductivity. It has one circuit opening (CO) contact and meets the Ingress Protection (IP) 20 standard for protection against finger insertion. It has an operating temperature range from -25 to +60 degrees C. This timing relay is Underwriters Laboratories (UL) listed, Canadian Standards Association (CSA) certified, meets China Compulsory Certificate (CCC) standards and displays the European Conformity (CE) and EurAsian Conformity (EAC) marks.
Strengths
ON-Delay Function
LED for indicating timing relay on voltage
LED for indicating relay switched
Time setting range selector switch
22.5mm wide housing and compact design
DIN rail mounting
LED for indicating timing relay on voltage
LED for indicating relay switched
Time setting range selector switch
22.5mm wide housing and compact design
DIN rail mounting
Applications
Used in control, starting protective and control circuits for all switching operations
Technical specifications
Attributes
| Type | on-delay timer |
|---|---|
| Model | sirius 3rp15 |
Show UNSPSC/ECL@SS
£ 76.20 excl. VAT
/ Each
£ 91.44 incl. VAT
Usually arrives within 14 working days
