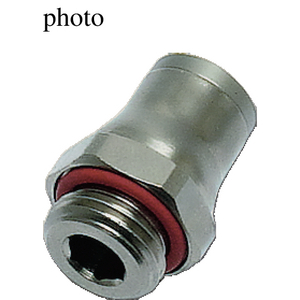

LEGRIS LF3600 BRASS FITTING 3601 12 17
Stud Male BSP Parallel Metric 3601
References
parker legris:3601 12 17
rubix:124A1233
ean:0820099275468
Technical specifications
| Type | 3601 |
|---|
Product details : LEGRIS LF3600 BRASS FITTING 3601 12 17
In line connection of tubing to a threaded port . Internal tightening with a flat spanner or socket wrench, internal adjustment by an Allen key
- solid construction and compact design
- external shapes easy to clean
- components meet FDA standard and 1935/2004/EC regulation
- excellent resistance to corrosion
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
- solid construction and compact design
- external shapes easy to clean
- components meet FDA standard and 1935/2004/EC regulation
- excellent resistance to corrosion
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
Strengths
• High Performance
• Resistant up to +150°C at 30 bar
• Excellent mechanical performance
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Full flow, minimal pressure drop• Versatility
• Materials conform to FDA standards
• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• More than 250 part numbers
• One fitting for numerous applications: stock optimisation
• Manual connection and disconnection
• Compact and ergonomic• Reliability
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Resistant up to +150°C at 30 bar
• Excellent mechanical performance
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Full flow, minimal pressure drop• Versatility
• Materials conform to FDA standards
• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• More than 250 part numbers
• One fitting for numerous applications: stock optimisation
• Manual connection and disconnection
• Compact and ergonomic• Reliability
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
Applications
• Food Process
• Coffee Machines
• In-Plant Automotive
• Medical Equipment
• Printing
• Misting
• Welding Robots
Technical specifications
Attributes
| Logistic Weight | 34 g |
|---|---|
| Package weight | 184 g |
| Type | 3601 |
| Threading diameter (inch) | G3/8 '' |
| Exterior tube diameter | 20 mm |
| Min. temperature | -25 °C |
| Max. temperature | 150 °C |
| 60 mm | |
| 60 mm |
