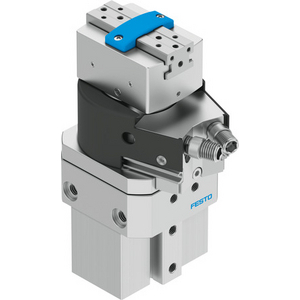

FESTO 1187959 SWIVEL/GRIPPER UNIT
Swivel/Gripper Unit
References
festo:HGDS-PP-16-P1-A-B
rubix:391A2356
manufacturer :1187959
ean:4052568228231
Technical specifications
| Type | Swivel/Gripper Unit |
|---|
Product details : FESTO 1187959 SWIVEL/GRIPPER UNIT
swivel/gripper unit HGDS-PP-16-P1-A-B with elastic cushioning and fixed stop. Size=16, Rotation angle adjustment range=0 - 210 deg, Stroke per gripper jaw=4,5 mm, Max. angular gripper jaw backlash ax,ay=0,1 deg, Max. gripper jaw backlash Sz=0,02 mm
swivel/gripper unit HGDS-PP-16-P1-A-B with elastic cushioning and fixed stop. Size=16, Rotation angle adjustment range=0 - 210 deg, Stroke per gripper jaw=4,5 mm, Max. angular gripper jaw backlash ax,ay=0,1 deg, Max. gripper jaw backlash Sz=0,02 mm
Technical specifications
Attributes
| Type | Swivel/Gripper Unit |
|---|---|
| Min. temperature | 5 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 16 mm |
Show UNSPSC/ECL@SS
£ 1,524.95 excl. VAT
/ Each
£ 1,829.94 incl. VAT
Usually arrives within 14 working days
