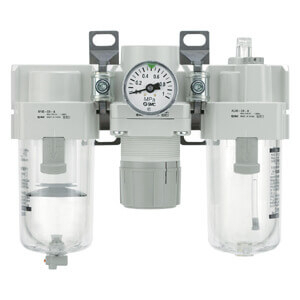

SMC AC30-F03D-A AIR FILTER + REGULATOR + LUBRICATOR
AC-B Combination Unit
References
smc:AC30-F03D-A
rubix:2599389
Product details : SMC AC30-F03D-A AIR FILTER + REGULATOR + LUBRICATOR
-
•Filter + Regulator + Lubricator.
•Body size: 10, 20, 25, 30, 40.
•Port Size: M5, 1/8, 1/4, 3/8, 1/2, 3/4.
•Max. operating pressure: 1.0 MPa.
•Attachments.
Size: 30
Thread: F (G)
Port Size: 03 (3/8)
Float type auto drain: D [Float Type Auto Drain (N.O.)]
Pressure Gauge: None
Attachment: w/o Attachment
Set pressure: 0.05 to 0.7 MPa setting
Semi-standard 1: Standard
Semi-standard 2: Standard
Pressure Unit: Name Plate and Pressure Gauge
•Body size: 10, 20, 25, 30, 40.
•Port Size: M5, 1/8, 1/4, 3/8, 1/2, 3/4.
•Max. operating pressure: 1.0 MPa.
•Attachments.
Size: 30
Thread: F (G)
Port Size: 03 (3/8)
Float type auto drain: D [Float Type Auto Drain (N.O.)]
Pressure Gauge: None
Attachment: w/o Attachment
Set pressure: 0.05 to 0.7 MPa setting
Semi-standard 1: Standard
Semi-standard 2: Standard
Pressure Unit: Name Plate and Pressure Gauge
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 72x195x167 mm |
|---|---|
| Logistic Weight | 1065 g |
| Min. service pressure | 0.5 bar |
| Max. service pressure | 8.5 bar |
| Material | Tank: Polycarbonate |
| Volume flow rate | 2500 l/min |
| Filter fineness | 5 µm |
| Connection 1 | G3/8 BSPP |
Show UNSPSC/ECL@SS
£ 117.18 excl. VAT
/ Each
£ 140.62 incl. VAT
Delivery usually within ( 4 ) days
