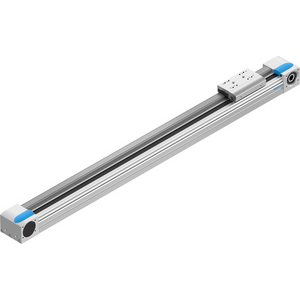

FESTO 3013356 TOOTHED BELT AXIS
Ball Screw Linear Actuator
References
festo:EGC-80-800-TB-KF-0H-GK
rubix:391A0696
manufacturer :3013356
ean:4052568268183
Technical specifications
| Type | ball screw linear actuator |
|---|---|
| Cylinder diameter | 80 mm |
Product details : FESTO 3013356 TOOTHED BELT AXIS
toothed belt axis EGC-80-800-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=28,65 mm, Working stroke=800 mm, Size=80, Stroke reserve=0 mm, Toothed-belt stretch=0,24 %
Technical specifications
Attributes
| Type | ball screw linear actuator |
|---|---|
| Cylinder diameter | 80 mm |
| Min. temperature | -10 °C |
| Max. temperature | 60 °C |
| Cylinder stroke | 800 mm |
| Fixation centre-to-centre distance | 78 mm |
| Design size | 80 |
Show UNSPSC/ECL@SS
£ 1,255.10 excl. VAT
/ Each
£ 1,506.12 incl. VAT
Usually arrives within 14 working days
