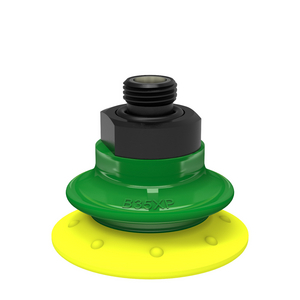

PIAB SUCTION CUP 0205100
Bellows suction cups B-XP Polyurethane
See technical informationSee documentsReferences
Piab:0205100
Rubix:119A3896
Manufacturer :0205100
Technical specifications
| Material | polyurethane 30/60 (pu) |
|---|---|
| Diameter | 35 mm |
| Shape | bellow |
Documents
Product details : PIAB SUCTION CUP 0205100
Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
Strengths
Suitable for limited level adjustment with good stability.
Excellent gripping performance on corrugated and porous or surface leaking objects such as cardboard, textured plastic parts and composite material (raw surface)
In the two-coloured suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable for accelerations and speed, at the same time, soft and flexible.
DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
The material DURAFLEX® is mark free.
Applications
Plastic part removal;Exterior and interior trim components assembly;Boxes and containers;Slip sheet feeding;Case / carton erecting, case / carton opening closing;Rotary carton feeding;Tray forming, tray unloading and loading;Robot pick and place and packing;Card / lid feeding and sorting;Plastic part removal
Technical specifications
Attributes
| Material | polyurethane 30/60 (pu) |
|---|---|
| Diameter | 35 mm |
| Shape | bellow |
| Type | g1/8 male with mesh filter |
Show UNSPSC/ECL@SS
£ 37.72 excl. VAT
/ Each
£ 45.26 incl. VAT
- Usually arrives within 14 working days
